Home > All Collections > Others > Power Splitter > DC～3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter

DC～3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/3-5S
CONTACT US
  • DC～3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:DC～3000 MHz

Insertion Loss≤ 17.5 dB

Input Port VSWR:Typ.1.11 / Max.1.25

Output Port VSWR:Typ.1.10 / Max.1.25

Isolation:Min.15dB

Amplitude Balance:± 0.8dB

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxidation

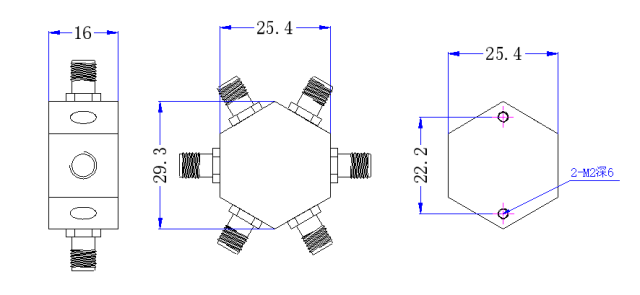

Outline Dimensions:25.4*29.3*16（mm）

Weight:150（g）
