Home > All Collections > Others > Power Splitter > DC～3000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

DC～3000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/3-8S
CONTACT US
  • DC～3000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：DC～3000 MHz

Insertion Loss ≤ 19.5dB

Input Port VSWR：Typ.1.16 / Max.1.25

Output Port VSWR：Typ.1.16 / Max.1.25

Isolation：Min.17dB

Amplitude Balance：±0.4dB

Phase Balance：±4°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint

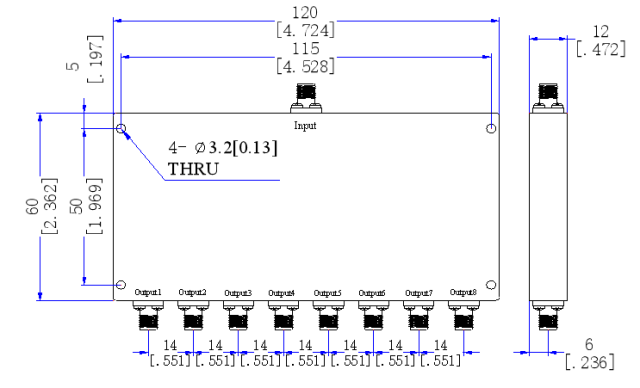

Outline Dimensions：120*60*12（mm）

Weight：220（g）
