Home > All Collections > Others > Power Splitter > DC～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

DC～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/6-16S
CONTACT US
  • DC～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:DC～6000 MHz

Insertion Loss≤ 28.5dB

Input Port VSWR:Typ.1.18 / Max.1.25

Output Port VSWR:Typ.1.16 / Max.1.25

Isolation:Min.6dB

Amplitude Balance:±0.8dB

Phase Balance:±8°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

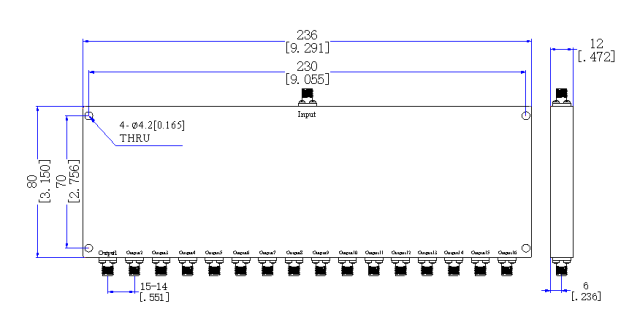

Outline Dimensions :80*236*12（mm）

Weight:575（g）
