Home > All Collections > Superbat > Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)

Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)

No.B08ZXW263R
Size:
1ft
2ft
2ft 2pcs
3ft
3ft 2pcs
6ft
6ft 2pcs
10ft
15ft
25ft
40ft
50ft
75 ft
100ft
150ft
200ft
250ft
300ft
Color:
No Cord Reel
With Cord Reel
CONTACT US
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
  • Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/75FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
Description

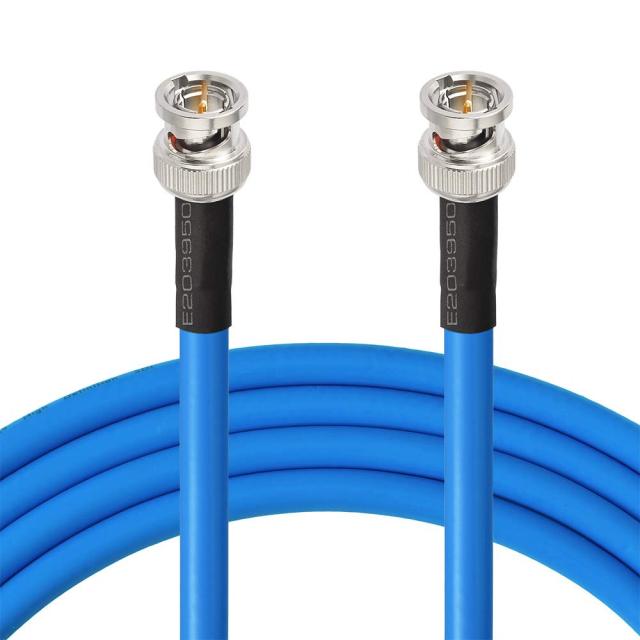

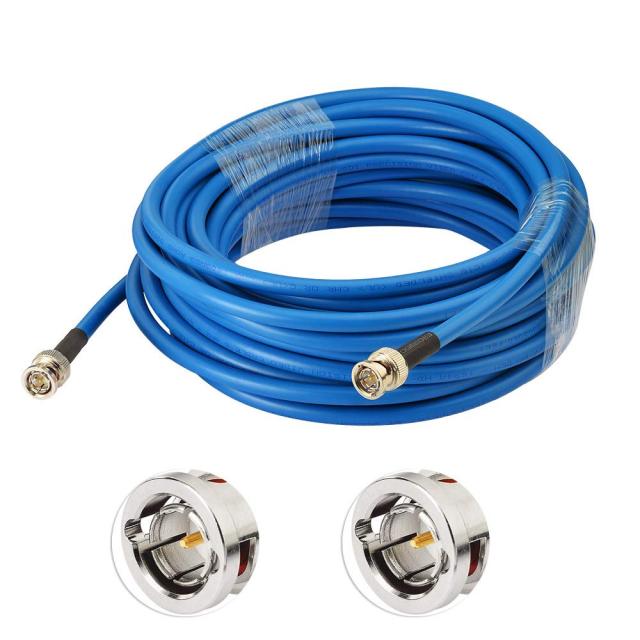

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )

Features and Specifications:

  • Nominal impedance: 75 ohms-ideal - for audio and video
  • Velocity of propagation: 82%
  • Capacitance: 16.2 pF/ft.
  • Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
  • Overall diameter: 0.274".

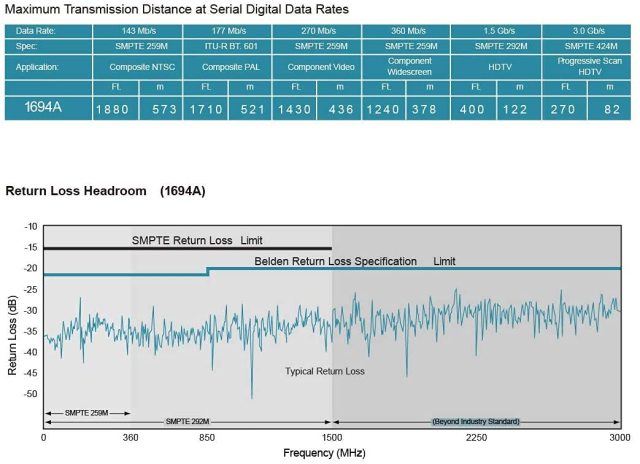

Serial Digital Data Rates

  • Standard Definition SD-SDI (270 Mbps, ST 259)
  • HD standard HD-SDI (1.483 Gbps, ST 292)
  • 3G-SDI (2.97 Gbps, ST 424)
  • 6G-SDI (5.94 Gbps, ST 2081)
  • 12G-SDI (11.88 Gbps, ST 2082)

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )

flexible

1694A cable

connector

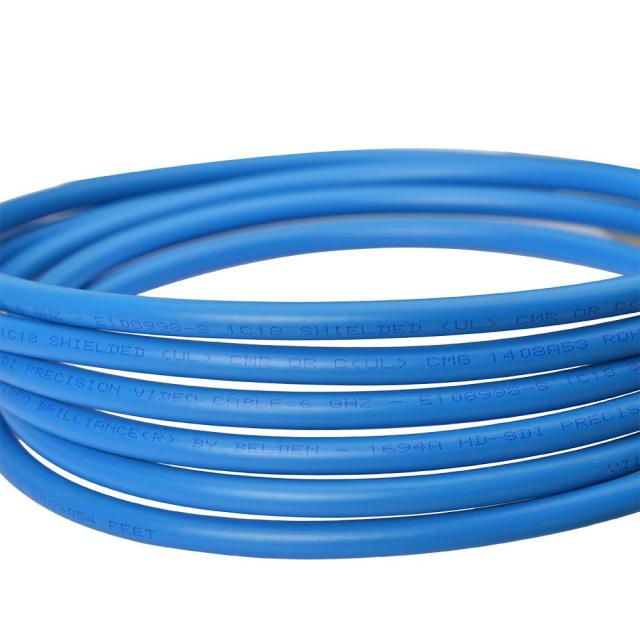

  • Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.
  • This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.

  • Center conductor: 0.40" dia. bare copper
  • Dielectric: 0.180" dia. foamed PE
  • Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejection
  • PVC outer jacket - for durability and long-term protection.

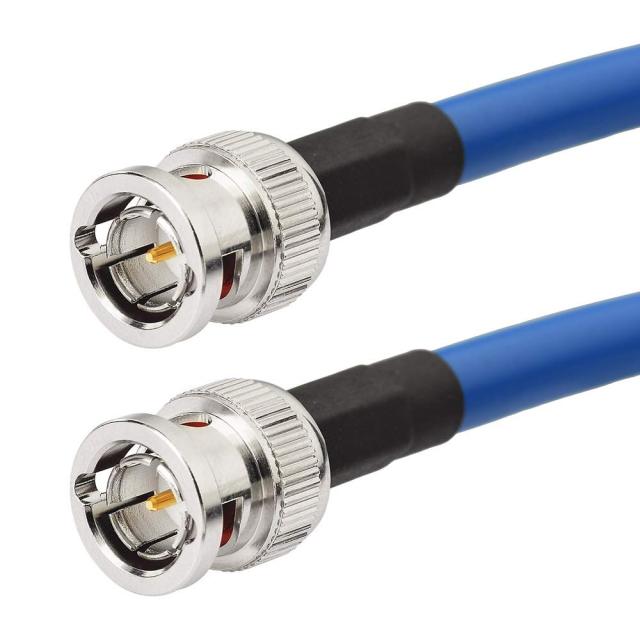

  • 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
  • 50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level.
1694A SDI CABLE 178 SDI CABLE 1855A 3G/6G SDI Cable 75 Ohm BNC Cable Belden 1694A Cable SDI CABLE coil cable 2pcs SDI CABLE
3G/6G/12G SDI BNC Cable 3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 1pcs 3G SDI 6G-SDI Cable BNC Cable Thin Short bnc Male to male Cable Long 6g sdi cable BNC Coaxial Cable + Cord Reel BNC Cable 3G/HD SDI Cable Coil Cable 75ohm BNC to BNC Extension Cable 3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 2pcs
See Details
See Details
See Details
See Details
See Details
See Details
Customer Reviews
4.7 out of 5 stars
407
4.5 out of 5 stars
277
4.6 out of 5 stars
42
4.7 out of 5 stars
407
4.6 out of 5 stars
83
4.7 out of 5 stars
260
Cable type Belden 1694A RG179 coax cable Belden 1855A Belden 1694A 3C-2V A/V Cable RG179 coax cable
Length 1FT/2FT/3FT/10FT/15FT/30FT /50FT/75FT /100FT 12inch / 20inch /3ft /6ft 12inch /3FT/6.5FT 50ft / 100ft / 150ft /200ft 3 ft 12inch /3ft
Support SD-SDI/HD-SDI /3G-SDI/6G-SDI Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable SD-SDI/HD-SDI /3G-SDI/6G-SDI for HD-SDI/3G-SDI/6G-SDI/ 4K/8K，SDI Video Cable SD-SDI/HD-SDI /3G-SDI Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable
SDI Cable BNC Cable 3G/6G/12G SDI Cable Belden 1694A Red yellow green Cable Long 3G 6G SDI Cable 75Ohm BNC Cable Belden 1694A Cable 3G 6G 12G SDI Cable 75 ohm BNC Cable Belden 1694A Black sdi vedio cable 12G SDI Cable 4K BNC Cable thin sdi cable short 12G SDI Cable 4K BNC Cable 75 Ohm Belden 4694R + SDI Cable Reel
BNC Cable 3G 6G SDI Cable Long 3G 6G SDI Cable BNC Cable + SDI Cable Reel BNC Cable 3G 6G SDI Cable Short 12G SDI Cable 4K Thin BNC Cable Long 12G SDI Cable BNC Cable + SDI Cable Reel
See Details
See Details
See Details
See Details
See Details
Customer Reviews
5.0 out of 5 stars
2
5.0 out of 5 stars
3
4.9 out of 5 stars
12
4.4 out of 5 stars
7
—
Cable type Belden 1694A Multi-coloured Belden 1694A blue Belden 1694A Black Belden 4855R Belden 4694R
Superbat sdi cable bnc cable
