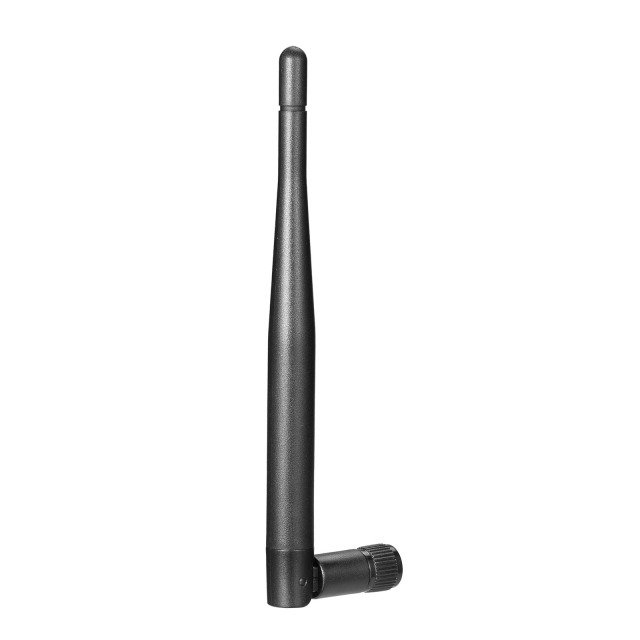

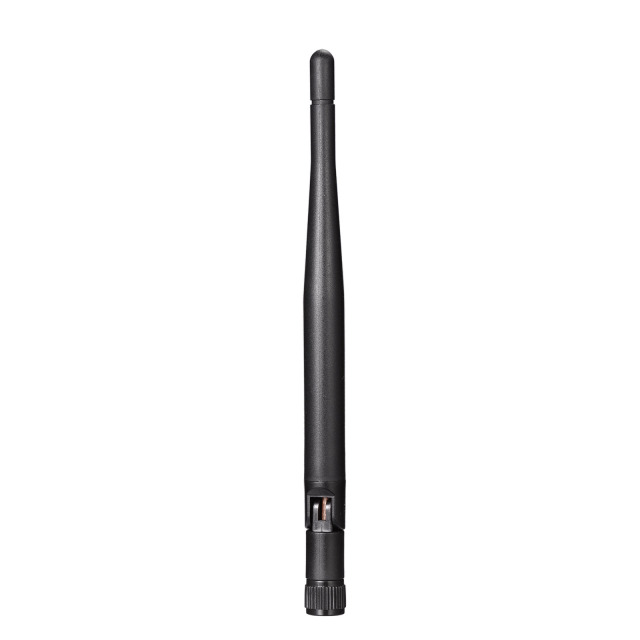

This compact 2.4GHz/5.8GHz double frequency omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 6dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs
This flexible antenna features a tilt-and-swivel RP-SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with RP-SMA connectors including D-Link, Linksys and others.
Applications:
IEEE 802.11b,802.11g,802.11b/g,Wirless Lan
Omni Directional Mulitpoint applictions
Bluetooth ,Point to Mulotpoint
Pubic Wirless Hotspot
WiFi,RFID
Wireless Video Systems
Features:
Superior Performance
The Weight is light
Good appearance designs
Installed for Collinear Vertial Polarization
Multiple options
RoHS Compliant
Specification:
Frequency: 2.4GHz/5.8GHz
Gain: 3dBi
Polarization : Vertical
Impedance : 50 Ohm

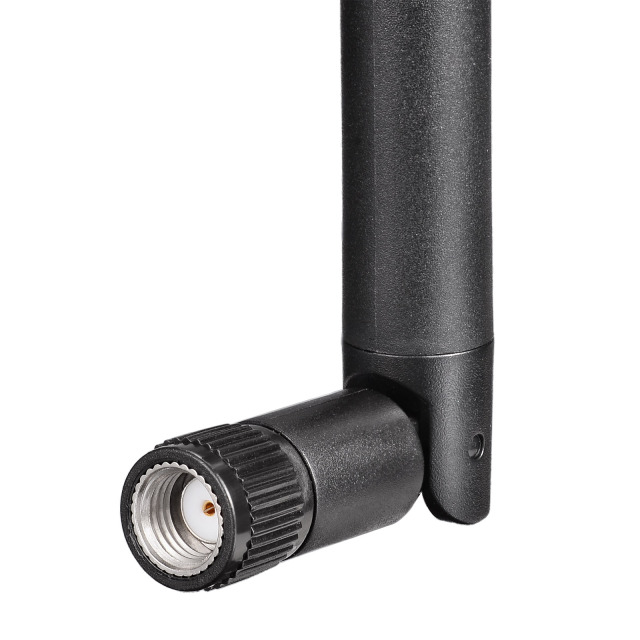

Connector: RP-SMA Plug (female socket)
Antenna length: 137mm
Operation Temperature: -20~+60 °C
Flexible WiFi antenna
Tilt and swivel design
Color:Black
