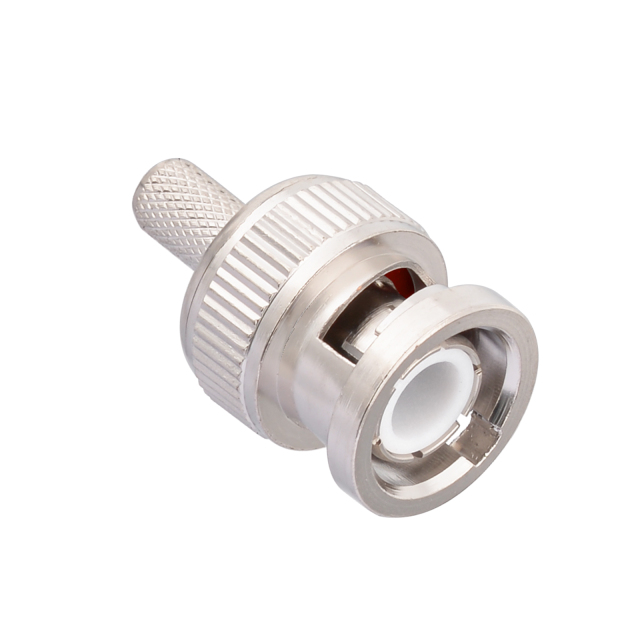

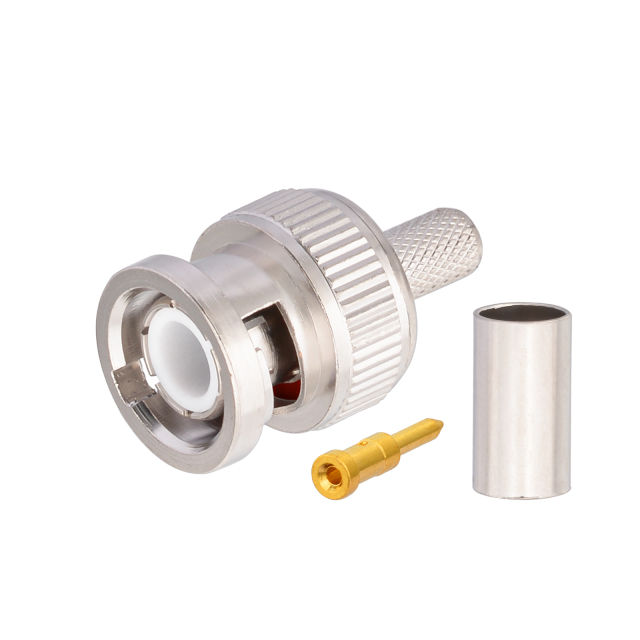

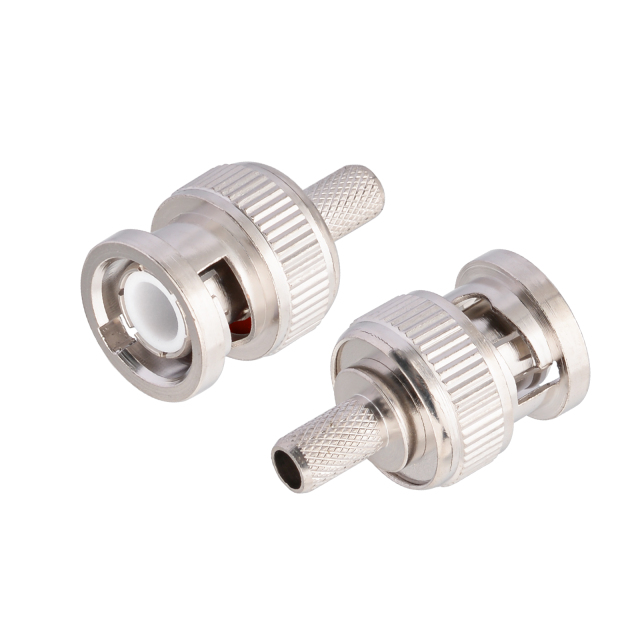

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
Superbat offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.
Features and Benefits
Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ohm and 75 Ohm impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
Applications
Antennas
Broadcast (117 Ohm)
Telecom
Automotive
Computers/LANs
Medical Equipment
Satcom
Base Stations
Cable Modems
Instrumentation
Mil-Aero
