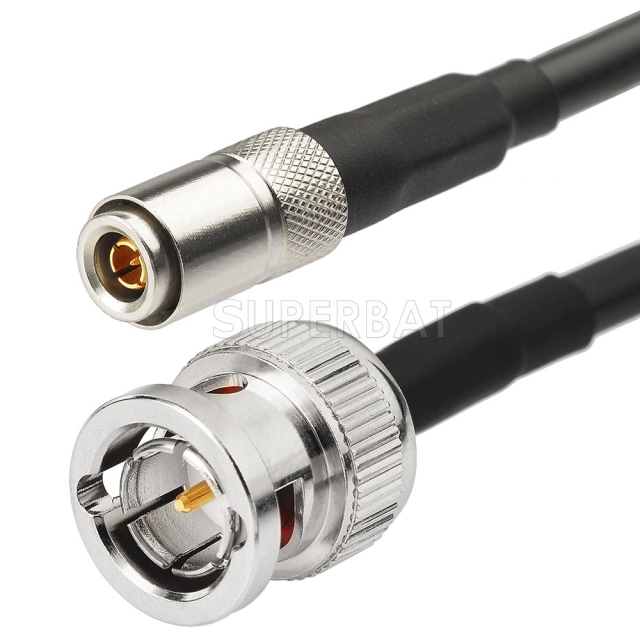

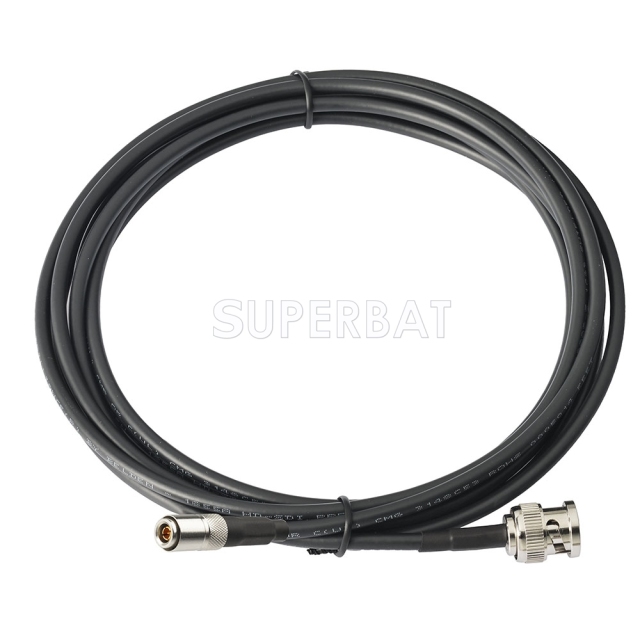

Connector Type: BNC Male 75 Ohm;
Connector Type: DIN 1.0/2.3 Plug 75 Ohm;
Cable Type: Belden 1855A;
Length: 10 feet;
Cable Impedance: 75 Ohm;
Package Weight: 92g;
Package Included: 1 x Cable;
Environmental Space: Indoor - Riser
Capacitance: 16.3 pF/ft;
Inductance: 0.107 µH/ft;
UL Voltage Rating: 300 V RMS;
Return Loss (RL):
5 MHz - 1600 MHz RL>23 dB
1600 MHz - 4500 MHz RL>21 dB
4500 MHz - 6000 MHz RL>15 dB
Conductor Count: 1
Conductor Size: 23 AWG
Conductor DCR:
Nominal Conductor DCR: 20.1 Ohm/1000ft
