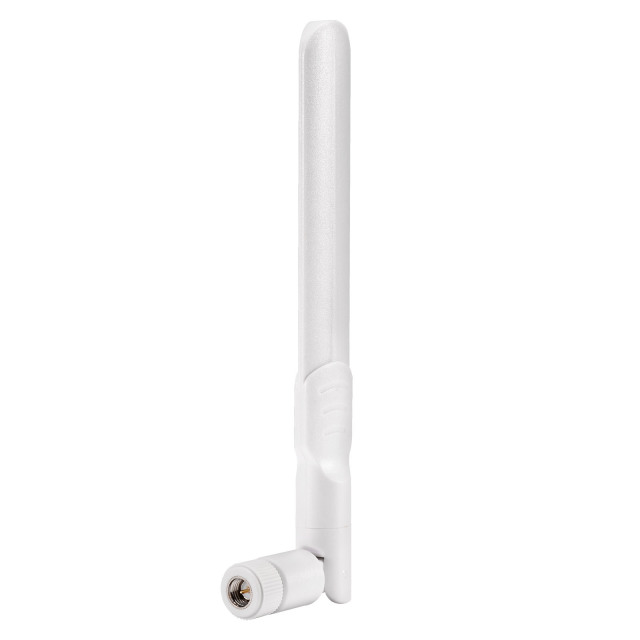

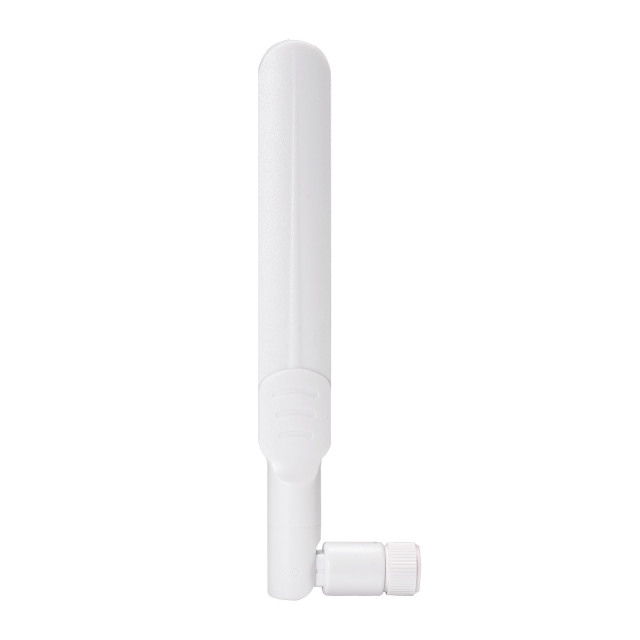

The Superbat Flat Swivel Antenna is a high-efficiency mid-gain 3G/4G/GPS omnidirectional antenna. The "rubber-duck" style antenna is an 6.3 inch (160 mm) omni-directional antenna that provides 8 dBi of gain and supports all 2G, 3G and 4G/LTE/xLTE/AWS frequency bands (700-2700 MHz) ,such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.
Important Note!!:

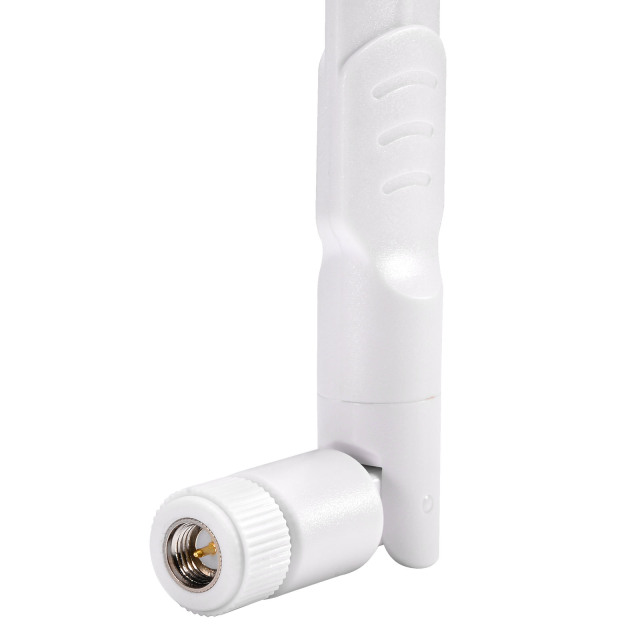

This antenna with SMA Male Plug connector (Thread inside with Pin)
It only match SMA Jack connector (Thread outside without Pin)
**Please confirm your device interface type before purchasing**.
Specification
Gain: 8dBi
Antenna Length: 16cm
Frequency Range: 700-960MHz/1710-2700MHz
Vswr: < 2.0
Polarization: Vertical
Max power: 50 W
Temperature: -40°С ~ +80°С
Connector Type: SMA Male
Input Impendence: 50Ω
Radiation: Omni Directional
Weight: 15g
Installation: Screw
Package List: 1 x Antenna;(As the Picture Shown)
