1.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter

No.MNK-A3250-LS
CONTACT US
  • 1.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Cut Off Frequency：1.0GHz

Pass Band Frequency：DC～1.0GHz

Pass Band Insertion Loss≤1.0dB @ DC～0.9GHz

≤1.5dB @ 0.9～1.0GHz

Pass Band VSWR≤1.3:1

Stop Band Attenuation≥70dB @ 1.3～4.2GHz

Impedance：50 ohms

Power≤15W

Connectors：SMA-Female

Surface Finish：Guided Oxygen or Black Paint

Temperature Range：-55℃～+85℃

Net weight：0.06 KG

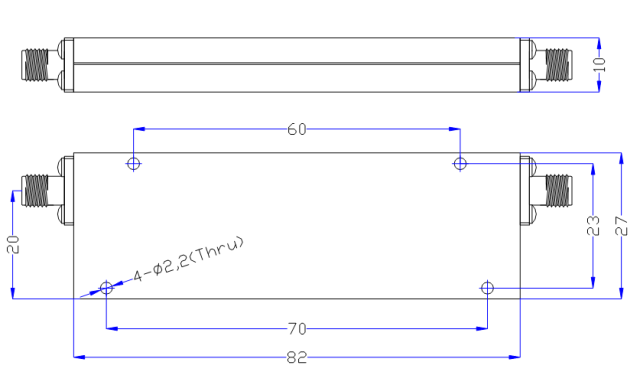

Configuration：As Below (Size Unit: mm)
