1.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter

No.MNK-A3282-HS
CONTACT US
  • 1.0 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Cut Off Frequency：1.0GHz

Pass Band Frequency：1.0～6.0GHz

Pass Band Insertion Loss≤2.0dB @ 1.0～1.15GHz

≤1.0dB @ 1.15～6.0GHz

Pass Band VSWR ≤1.6:1

Stop Band Attenuation≥60dB @ DC～0.86GHz

Impedance：50 ohms

Power≤15W

Connectors：SMA-Female

Surface Finish：Guided Oxygen or Black Paint

Temperature Range：-55℃～+85℃

Net weight：0.106 KG

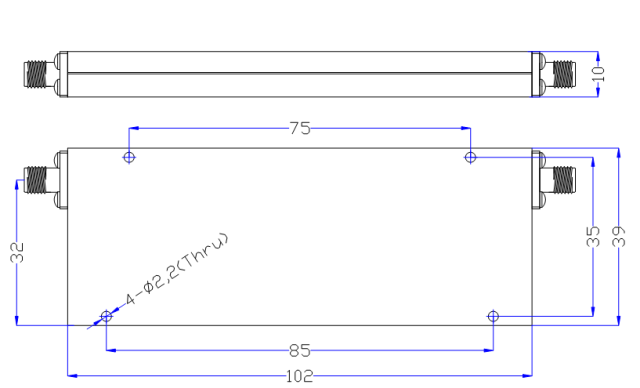

Configuration：As Below (Size Unit: mm)
