Specifications
Frequency Range：100 MHz
Insertion Loss ≤ 3.0dB（Excluding theoretical loss：12.0 dB）
Input Port VSWR ≤ 1. 50: 1
Output Port VSWR ≤ 1. 50: 1
Isolation：Typ.26dB / Min.18dB
Amplitude Balance ：± 0.8dB
Phase Balance ：±8°
Impedance：50 Ohms
Input/Output Connectors：SMA-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

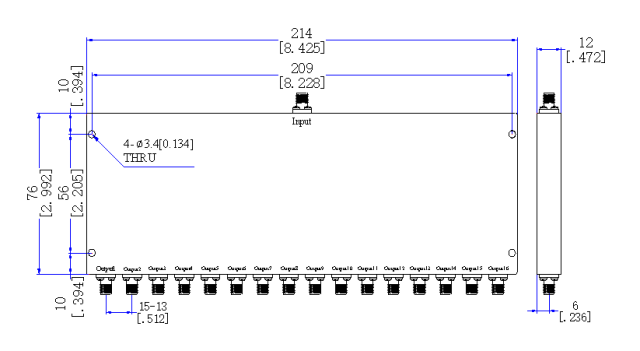

Outline Dimensions:76*214*12（mm）
Weight:480（g）
