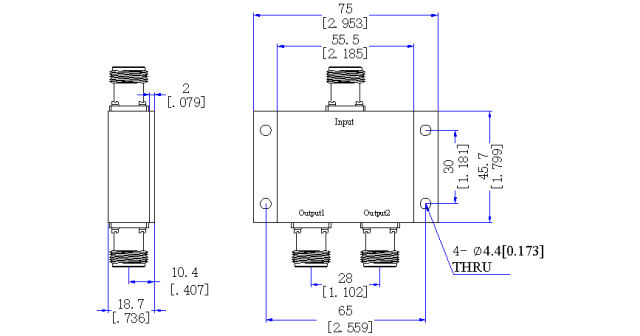

1000 MHz N Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-1-2N
CONTACT US
  • 1000 MHz N Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:1000 MHz

Insertion Loss≤0.4dB（Excluding theoretical loss:3.0 dB）

Input Port VSWR:Max.1.06

Isolation :Typ.32dB / Min.28dB

Amplitude Balance:±0.2dB

Phase Balance:±2°

Impedance:50 Ohms

Input/Output Connectors:N-Female

Power Rating Splitter:50W; Combiner:3W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

Weight:140（g）
