Specifications
Frequency Range:10000～28000 MHz
Insertion Loss ≤ 0.8 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.5
Output Port VSWR:Typ.1.26 / Max.1.5
Isolation :Typ.22dB / Min.16dB
Amplitude Balance ≤ 0.4dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors :2.92mm-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature: -45℃ ~ +85℃
Surface Finishing:Black paint

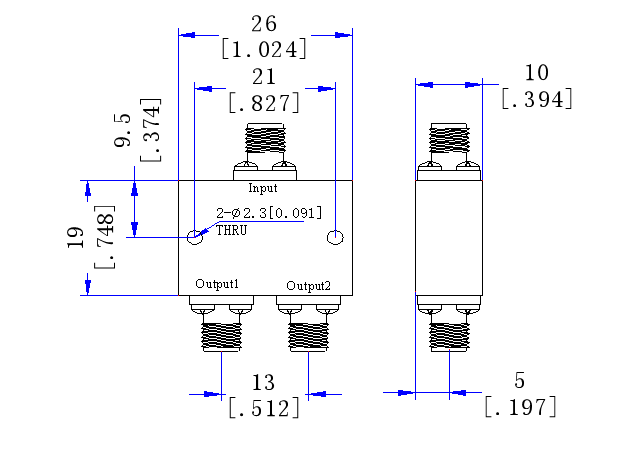

Outline Dimensions:26*19*10（mm）
Weight:21（g）
