Specifications
Frequency Range:10000～40000 MHz
Insertion Loss ≤ 2.5dB（Excluding theoretical loss :9.0 dB）
Input Port VSWR:Typ.1.38 / Max.1.7
Output Port VSWR :Typ.1.26 / Max.1.6
Isolation :Typ.22dB / Min.16dB
Amplitude Balance :± 0.5dB
Phase Balance :±8°
Impedance:50 Ohms
Input/Output Connectors:2.92mm-Female（Passivated Stainless Steel）
Power Rating Splitter:20W; Combiner:1W
Operation Temperature: -45℃ ~ +85℃
Surface Finishing:Black paint

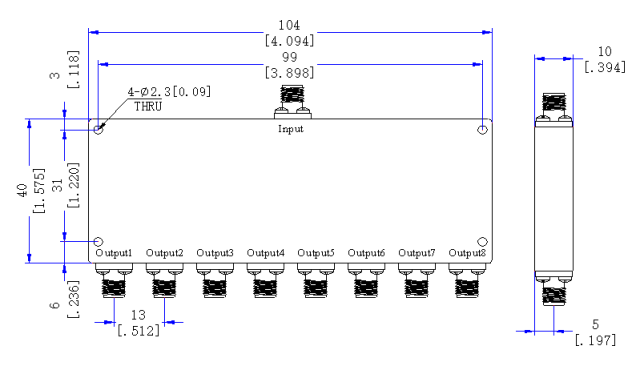

Outline Dimensions:104*40*10（mm）
Weight:138（g）
