Specifications
Frequency Range:1000～12000 MHz
Insertion Loss ≤ 3.2 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.24/ Max.1.6
Output Port VSWR:Typ.1.16/ Max.1.3
Isolation:Typ.24dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

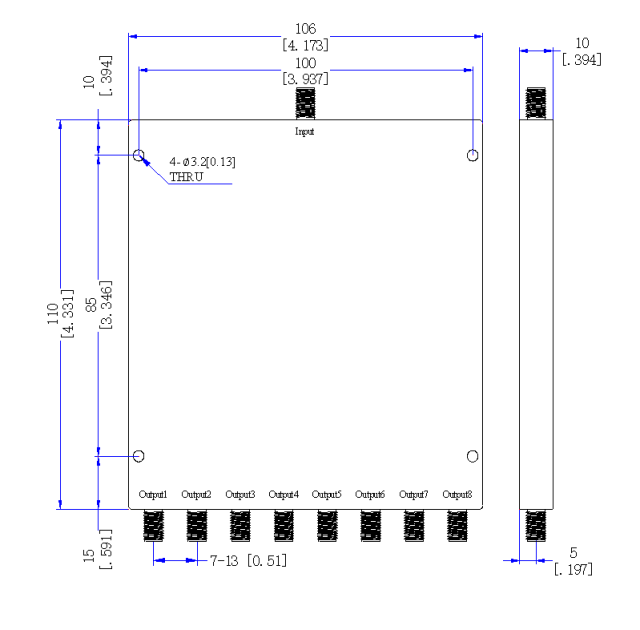

Outline Dimensions :110*106*10（mm）
Weight:320（g）
