Specifications
Frequency Range:1000～26500 MHz
Insertion Loss ≤ 3.0dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.4 / Max.1.5
Output Port VSWR:Typ.1.3 / Max.1.5
Isolation ≥16dB
Amplitude Balance:±0.5dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Gray paint / Black paint

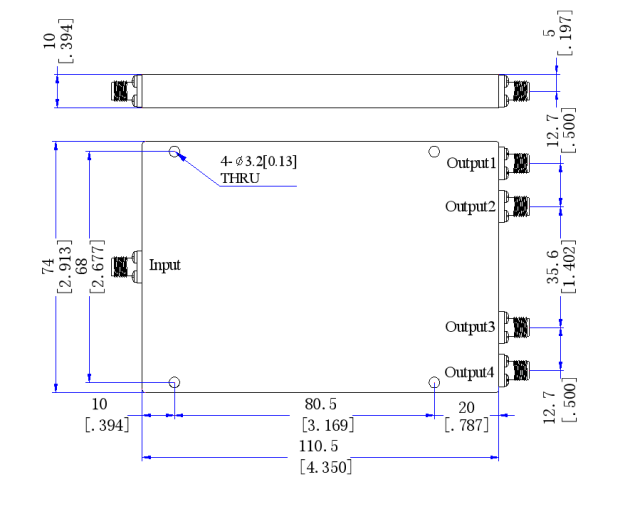

Outline Dimensions:110.5*74*10（mm）
DC Current:0.77A（193mA each）port
Weight:310（g）
