Home > All Collections > Others > Power Splitter > 1000~3000 MHz SMA Female 9 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000~3000 MHz SMA Female 9 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000~3000 MHz SMA Female 9 Way Power Divider 50 Ohm Wide-Band Signal Splitter

1000~3000 MHz SMA Female 9 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-1/3-9S
CONTACT US
  • 1000~3000 MHz SMA Female 9 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:1000～3000 MHz

Insertion Loss≤1.5dB（Excluding theoretical loss:9.6dB）

Input Port VSWR:Typ.1.20 / Max.1.4

Output Port VSWR:Typ.1.20 / Max.1.4

Isolation :Typ.24dB / Min.18dB

Amplitude Balance:±0.8dB

Phase Balance:±8°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:Splitter:20W; Combiner:2W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

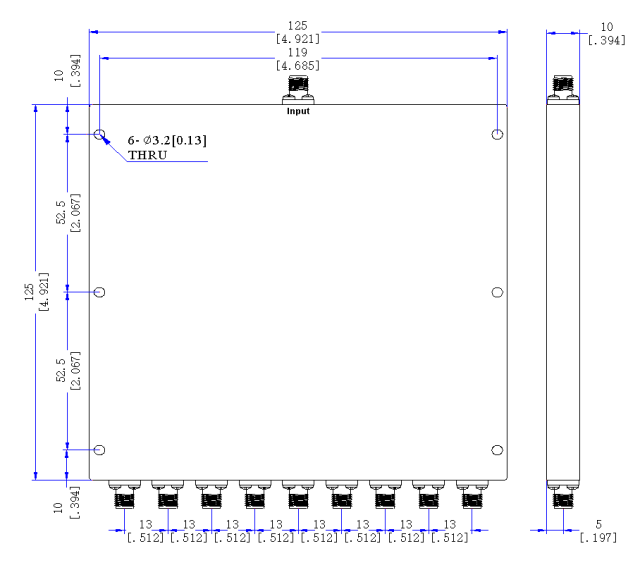

Outline Dimensions:125*125*10（mm）

Weight:420（g）
