10~3000MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitte

No.MPD-0.01/3-2S
CONTACT US
  • 10~3000MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitte
Description

Specifications

Frequency Range:10～3000 MHz

Insertion Loss ≤ 2.0dB（Excluding theoretical loss:3.0 dB）

Input Port VSWR ≤ 2.1: 1

Output Port VSWR ≤ 1.6: 1

Isolation ≥ 9dB

Amplitude Balance :±0.4dB

Phase Balance :±4°

Impedance:50 Ohms

Input/Output Connectors :SMA-Female

Power Rating Splitter:1W; Combiner:0.25W

Operation Temperature: -35℃ ~ +75℃

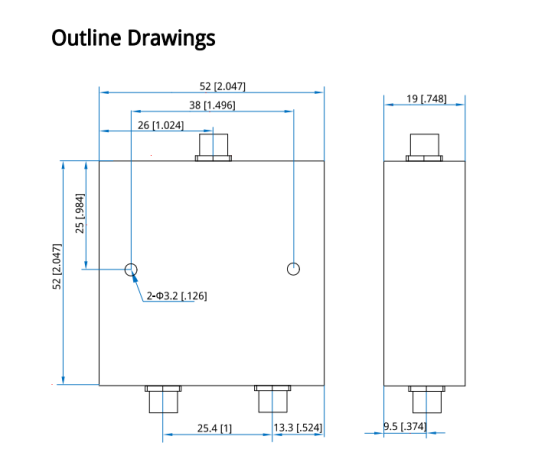

Outline Dimensions:52*52*19（mm）

Weight:125（g）
