10~500MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-10/500-6S
CONTACT US
  • 10~500MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specification

Frequency Range：10-500MHz

Insertion Loss ≤ 1.8dB（Excluding theoretical loss：7.8dB）

Input Port VSWR：Max.1.25

Output Port VSWR ：Max.1.30

Isolation：Min.18dB

Amplitude Balance：±0.5dB

Phase Balance ：±5°

Impedance：50 Ohms

Input/Output Connectors ：SMA-Female

Power Rating Splitter：1W; Combiner：0.15W

Operation Temperature：-35℃ ~ +70℃

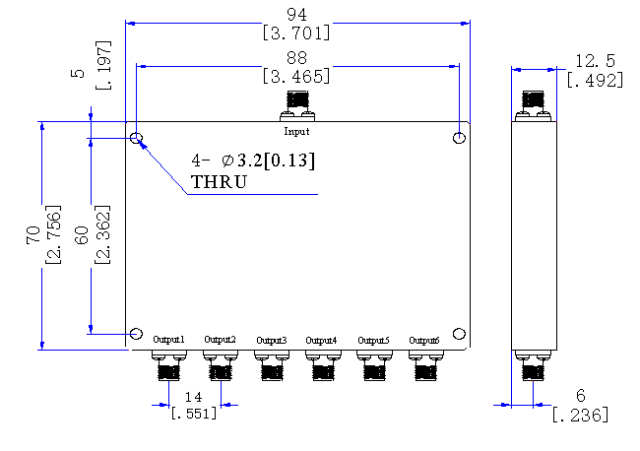

Outline Dimensions：70*94*12.5（mm）

Weight：185（g）
