Specifications
Frequency Range:10 MHz
Insertion Loss ≤ 0.5 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.15 / Max.1.25
Output Port VSWR :Typ.1.12 / Max.1.25
Isolation :Typ.26dB / Min.20dB
Amplitude Balance ≤ 0.2dB
Phase Balance :±2°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Black paint

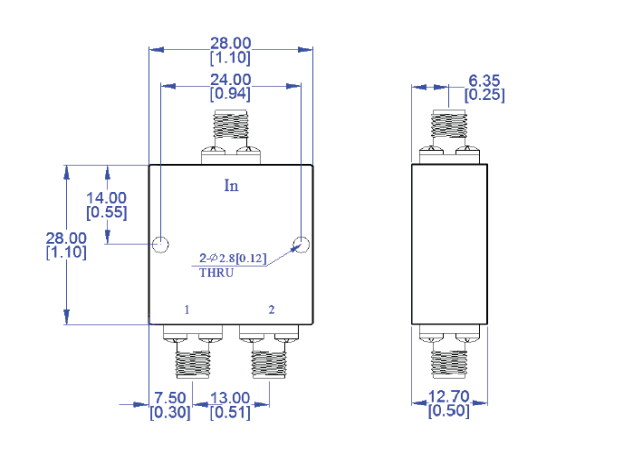

Outline Dimensions:28*28*12.7（mm）
Weight:45（g）
