10MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitte

No.MPD-10-6S
CONTACT US
  • 10MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitte
Description

Specifications

Frequency Range:10 MHz

Insertion Loss ≤ 1.2dB（Excluding theoretical loss:7.8dB）

Input Port VSWR:Max.1.4

Output Port VSWR:Max.1.3

Isolation:Min.20dB

Amplitude Balance :±0.4dB

Phase Balance :±4°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating Splitter:1W; Combiner:0.15W

Operation Temperature: -45℃ ~ +85℃

Surface Finishing:Sandblasting natural color conductive oxide

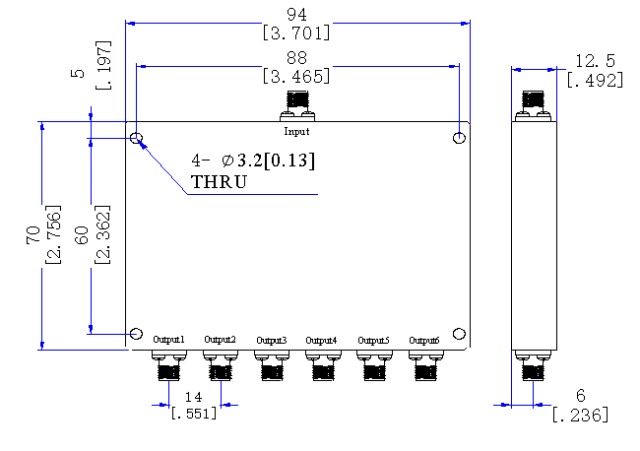

Outline Dimensions:70*94*12.5（mm）
