Specifications
Frequency Range:10 MHz
Insertion Loss ≤ 1.0dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤ 1. 30: 1
Output Port VSWR ≤ 1. 30: 1
Isolation :Typ.30dB / Min.25dB
Amplitude Balance :± 0.4dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature :-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

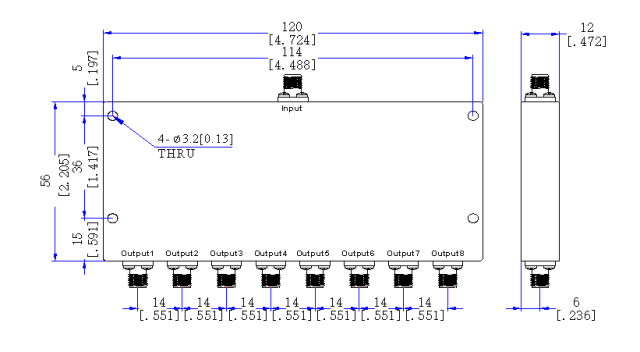

Outline Dimensions:56*120*12（mm）
Weight:200（g）
