Home > All Collections > Others > Power Splitter > 12300 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 12300 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 12300 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

12300 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-12.3-16S
CONTACT US
  • 12300 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:12300 MHz

Insertion Loss ≤ 1.8 dB（Excluding theoretical loss:12.0dB）

Input Port VSWR:Typ.1.20 / Max.1.25

Output Port VSWR:Typ.1.18 / Max.1.25

Isolation:Min.20dB

Amplitude Balance:±0.4dB

Phase Balance:±5°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating Splitter:20W; Combiner:1W

Operation Temperature -45℃ ~ +85℃

Surface Finishing:Black paint

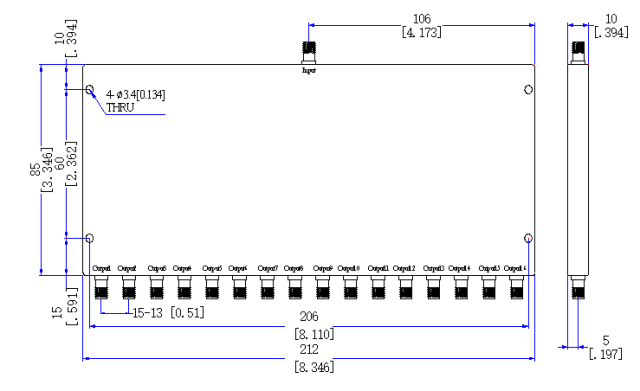

Outline Dimensions:212*85*10（mm）

Weight:470（g）
