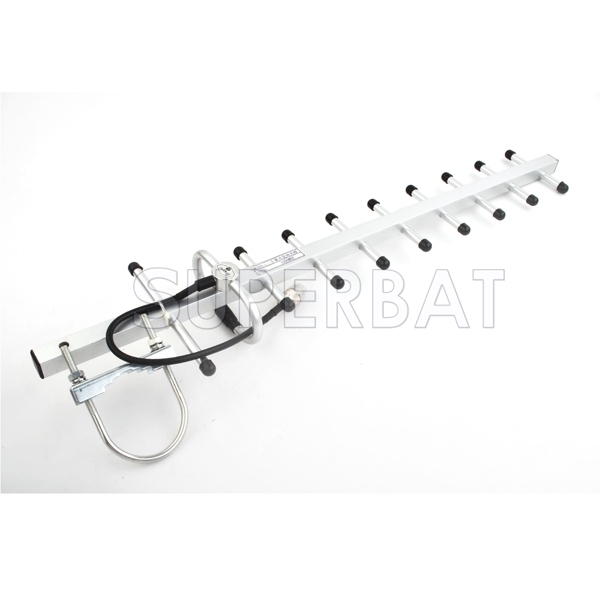

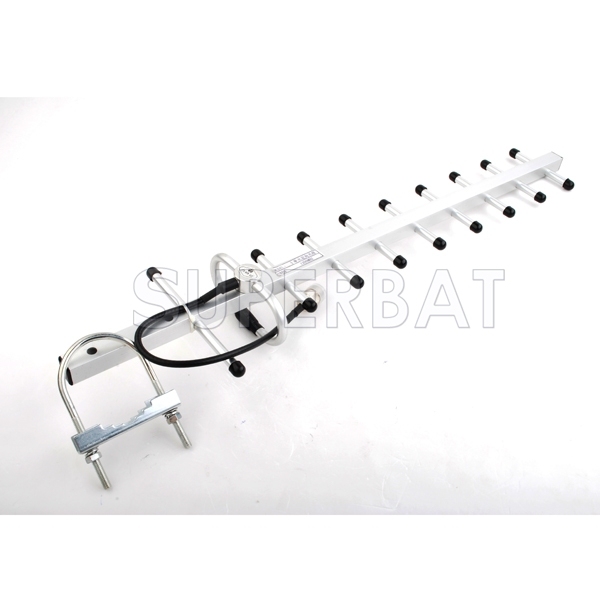

1.2GHz 1200MHz 12DBi GSM Yagi Directional Antenna with N Female Connector 22cm Cable

No.GMY-1052-N01SJ-120-22
Antenna Type：YagiNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：1200MHzConnector Series：NConnector Polarity：StandardConnector Gender：JackGain：12dbiRadiation：DirectionalV.S.W.R：≤1.5Cable Type：RG58Cable Length：22cmWeight：293g
CONTACT US
  • 1.2GHz 1200MHz 12DBi GSM Yagi Directional Antenna with N Female Connector 22cm Cable
  • 1.2GHz 1200MHz 12DBi GSM Yagi Directional Antenna with N Female Connector 22cm Cable
Description

Product Name: Yagi  Antenna


Electrical Specifications:

Frequency Range-MHz: 1200MHz

VSWR: ≤1.5

Input Impedance-Ohm: 50

Gain-dBi: 12

Polarization: Vertical

F/B ratio-dB

Maximum Power -W: 50

Bandwidth-MHz: 100

Connector: N-Female Connector   (default)


Optional conector:  SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/ MC-Card...and so on, please give us notes if you need other connectors!


Mechanical Specifications

Cable  Length-cm : 22

Weight-kg : 0.293

Antenna Length-cm:  65.5

Mounting Mast Diameter-mm:  Φ50-100
