Product Description:

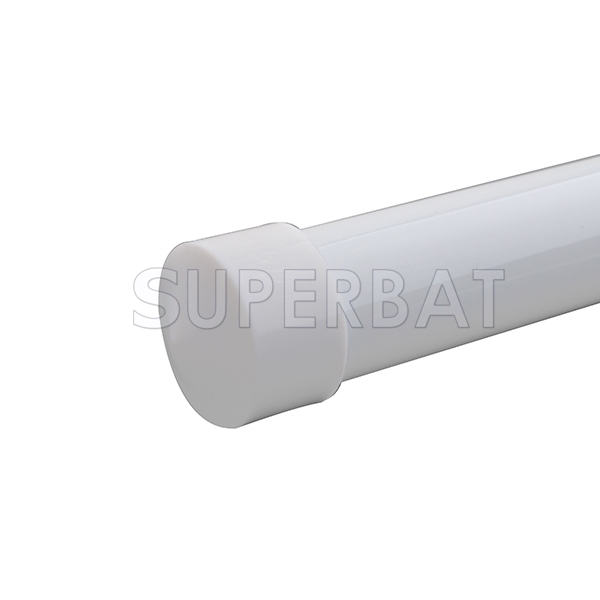

This 1.2 ghz 13 dbi omni directional antenna offered for 360 degree coverage used in point to multipoint and base station applications. Have high performing. this antenna features high gain, long working distance, light weight, compact structure and good command in wind resistance.
specifications
Frequency Range-MHz:1200MHz
VSWR :≤1.5
Input Impedance-Ω:50
Gain-dBi :13
Polarization:Vertical
Directionality:omnidirectional
F/B ratio-dB
Horizontal Beamwidth -°:360
Vertical Beamwidth -°:22
Maximum Power -W :500
Bandwidth-MHz:83

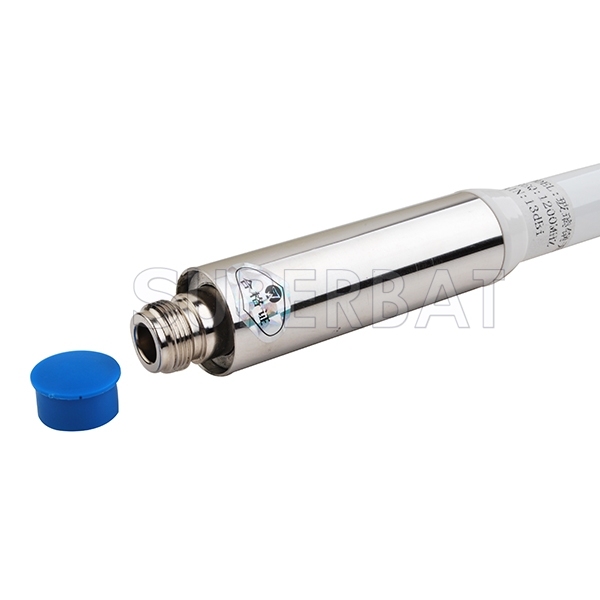

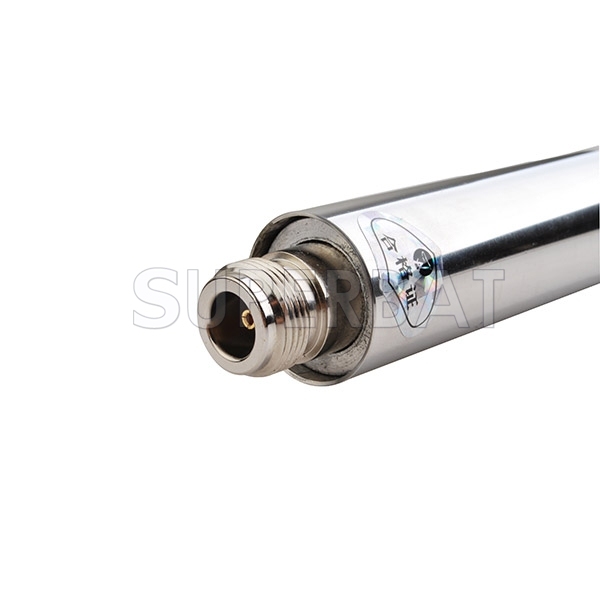

Connector: N-female
Mechanical Specifications
High-cm:1.2M
Weight: 1KG
Mounting Mast Diameter-mm :Φ50-100
