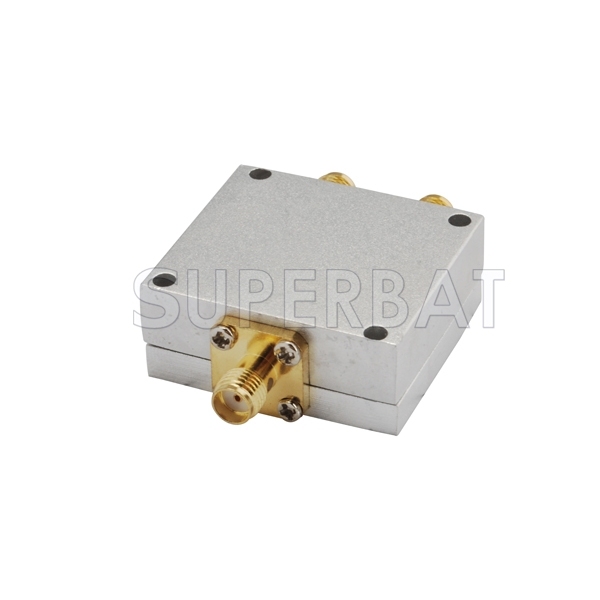

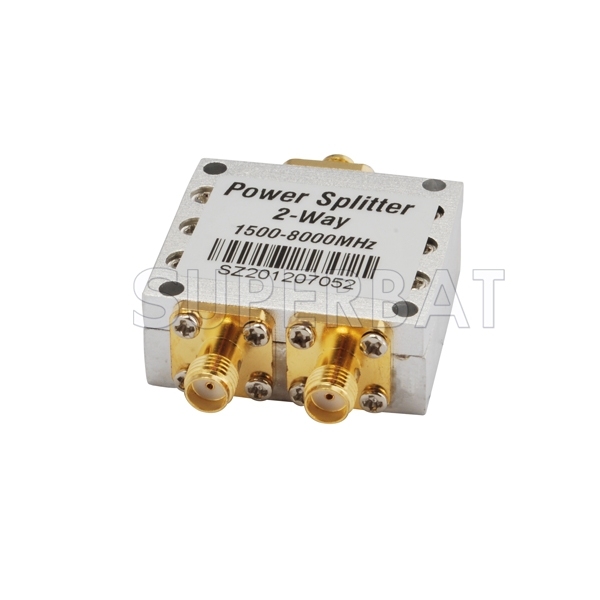

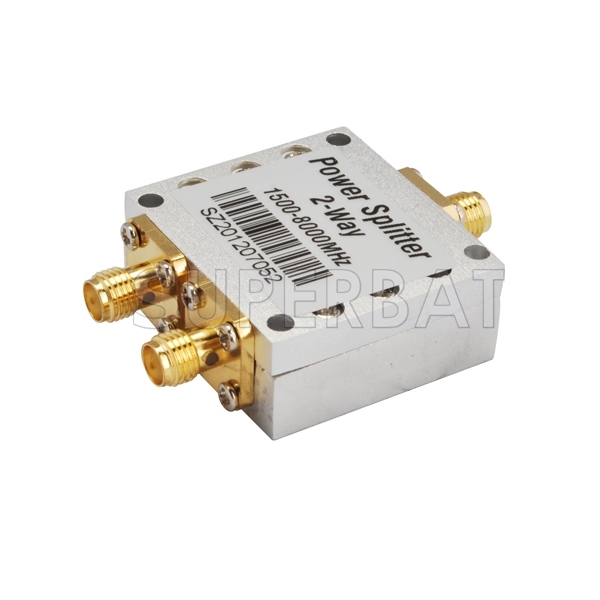

1500-8000MHz 2-way Power Divider SMA female connector |
Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
ELECTRICAL SPECIFICATIONS:
type: 2-way Power Divider
Frequency: 1500 ~ 8000MHz
Insertion loss(distribution ratio)-db:<=0.5DB
Isolation(dB): ≤18
Nominal Impedance(Ω): 50Amplitude Balance :± 0.2dB
VSWR :1:1.3
Max. Power(MAX)(W) :50
connector :SMA female
Mechanical Characteristics:
Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Weight：40g
PS. Power splitter box body surface polishing
