Specifications
Frequency Range:1～500 MHz
Insertion Loss ≤ 2.0 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤1.8: 1（1-5M）＆1. 4: 1（5-500M）
Output Port VSWR ≤1.8: 1（1-5M）＆1. 4: 1（5-500M）
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:± 0.5dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

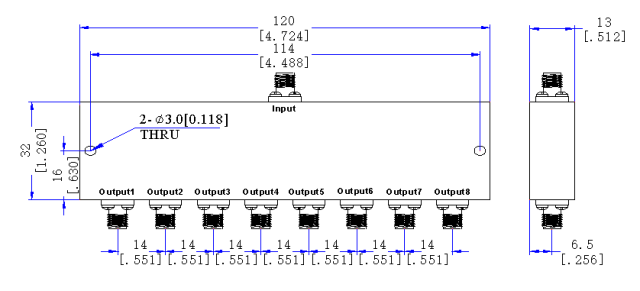

Outline Dimensions :120*32*13（mm）
Weight:200（g）
