Specifications
Frequency Range:1～50 MHz
Insertion Loss ≤ 2.4dB（Excluding theoretical loss:12.0 dB）
Input Port VSWR ≤ 1. 50: 1
Output Port VSWR ≤ 1. 50: 1
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:± 0.8dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating:Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

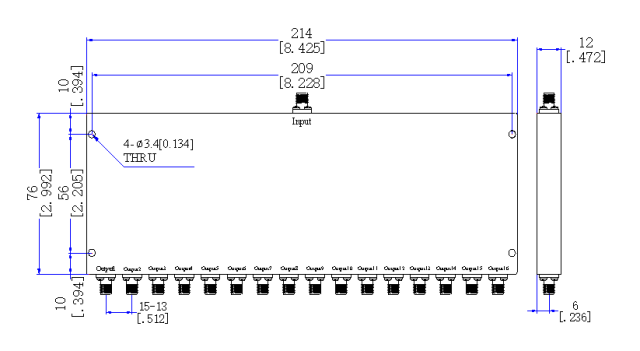

Outline Dimensions:76*214*12（mm）
Weight:480（g）
