Specifications
Frequency Range:1～50 MHz
Insertion Loss ≤ 1.2dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤ 1. 30: 1
Output Port VSWR ≤ 1. 30: 1
Isolation:Typ.30dB / Min.25dB
Amplitude Balance:± 0.4dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

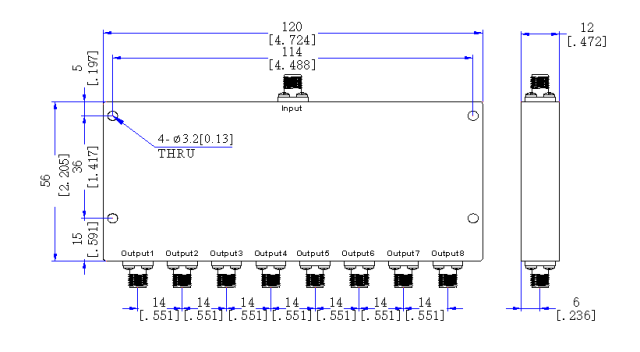

Outline Dimensions:56*120*12（mm）
Weight:200（g）
