Specifications
Frequency Range:1.5～30 MHz
Insertion Loss ≤ 1.6 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤1.8: 1（1.5-5M）＆1. 4: 1（5-30M）
Output Port VSWR ≤1.8: 1（1.5-5M）＆1. 4: 1（5-30M）
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:± 0.4dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating:Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

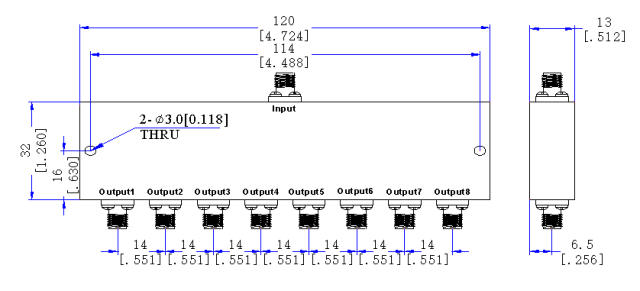

Outline Dimensions:120*32*13（mm）
Weight:200（g）
