Home > All Collections > Others > Power Splitter > 1.5~30MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1.5~30MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1.5~30MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

1.5~30MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-1.5/30-8S1
CONTACT US
  • 1.5~30MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:1.5～30 MHz

Insertion Loss ≤ 18.0dB

Input Port VSWR:Typ.1.09 / Max.1.15

Output Port VSWR:Typ.1.08 / Max.1.15

Isolation:Min.17.5dB

Amplitude Balance:±0.3dB

Phase Balance:±3°

Impedance:50 Ohms

Input/Output Connectors :SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

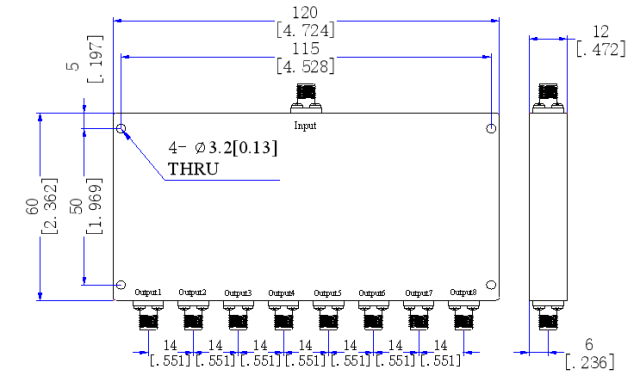

Outline Dimensions:120*60*12（mm）

Weight:220（g）
