880~960MHz,1900-2170MHz.
GSM 900:880~960MHz
GSM 1900
UMTS 2100: 1900 - 2170 MHz
Gain: 15dbi
Horizontal Beamwidth: 70 degree
Vertical Beamwidth: 58 degree
VSWR: ≤1.5
Max power:: 50 W
Polarization: Vertical
Input Impedance: 50 Ohm
Max power: 100 W
Size: 207x 178 x45 mm
Weight: 569g
Cable: RG58 /50-3 cable with 5M

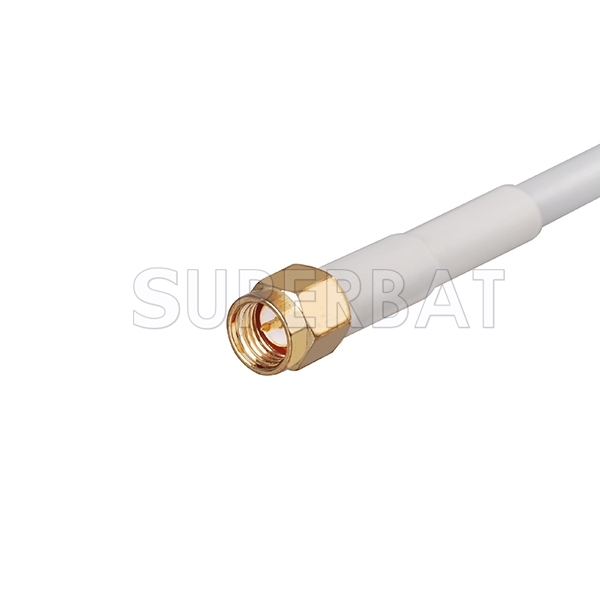

Connector: SMA default
SMA/SSMB/CRC9/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147..and so on.,please give us notes if the other connector is chosen !
