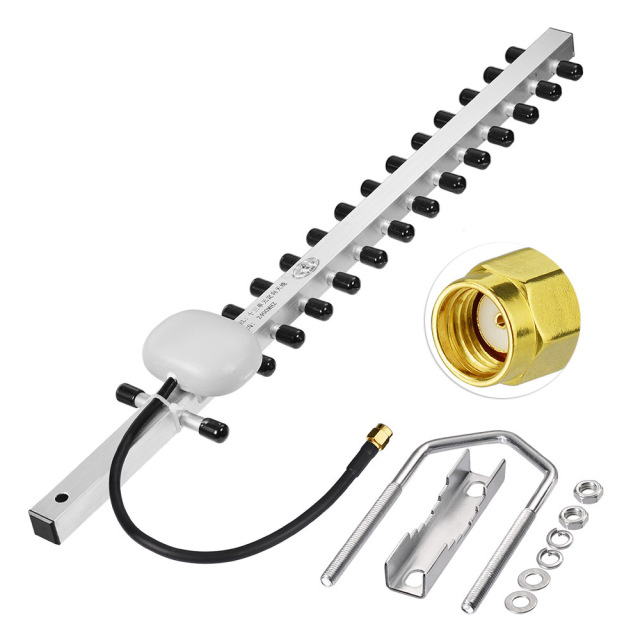

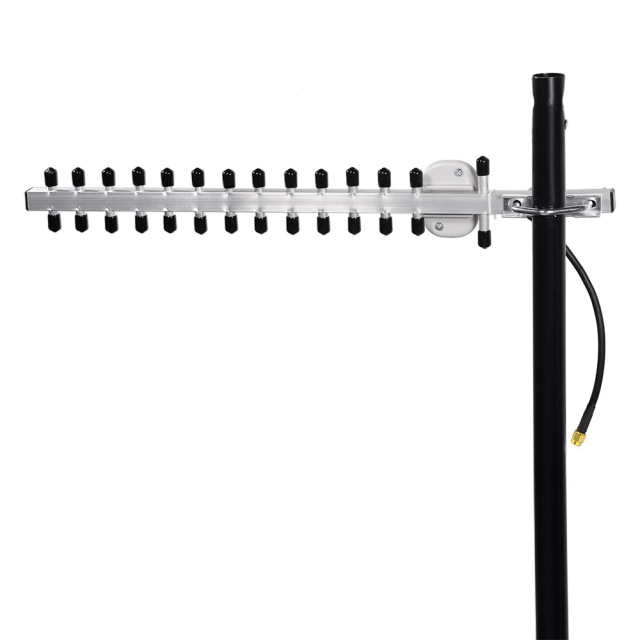

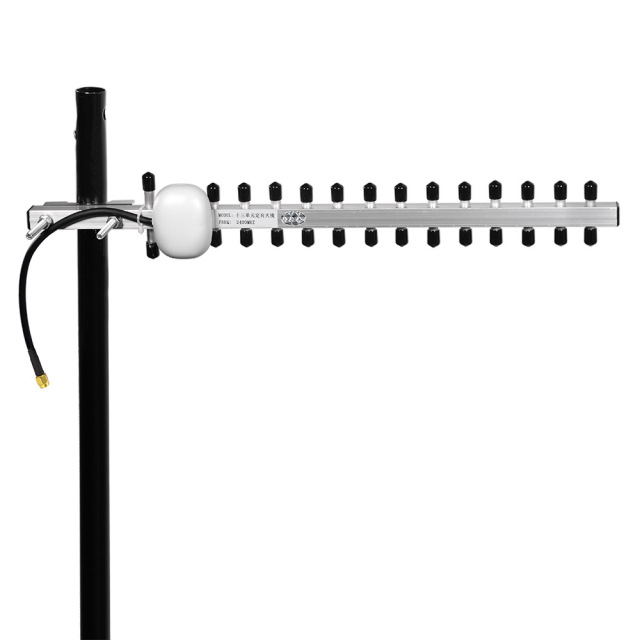

16DBi Wifi Yagi Antenna 2.4GHz directive antenna For 802.11b/g RP SMA male plug

No.WAY-876-S02SP-160-20
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：SMAConnector Polarity：Reverse PolarityConnector Gender：Plug StraightImpedance：50Nominal Gain：16dbiV.S.W.R：≤1.5Cable Length：20cmAntenna Size：46cm
CONTACT US
  • 16DBi Wifi Yagi Antenna 2.4GHz directive antenna For 802.11b/g RP SMA male plug
  • 16DBi Wifi Yagi Antenna 2.4GHz directive antenna For 802.11b/g RP SMA male plug
  • 16DBi Wifi Yagi Antenna 2.4GHz directive antenna For 802.11b/g RP SMA male plug
  • 16DBi Wifi Yagi Antenna 2.4GHz directive antenna For 802.11b/g RP SMA male plug
  • 16DBi Wifi Yagi Antenna 2.4GHz directive antenna For 802.11b/g RP SMA male plug
Description

Frequency Range-MHz: 2400~2483MHz
VSWR : ≤1.5
Input Impedance-Ω: 50
Gain-dBi : 16dbi
Polarization : Vertical
F/B ratio-dB
Horizontal Beamwidth -°: 36
Vertical Beamwidth -°: 23
Maximum Power -W : 50
Bandwidth-MHz : 50MHZ

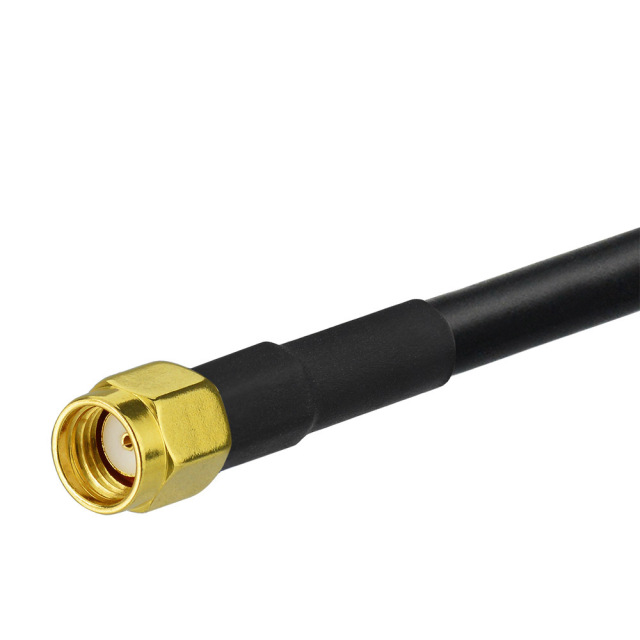

Connector: RP SMA Plug
Mechanical Specifications
Dimensions-cm: 46cm
Weight-kg: 0.4
Length-cm :
Mounting Mast Diameter-mm: Φ50-100
Cable length- cm : 20cm
