Specifications
Frequency Range:18000～27000 MHz
Insertion Loss ≤ 1.0 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.5
Output Port VSWR:Typ.1.26 / Max.1.5
Isolation:Typ.22dB / Min.16dB
Amplitude Balance :± 0.4dB
Phase Balance :±5°
Impedance:50 Ohms
Input/Output Connectors :2.92mm-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

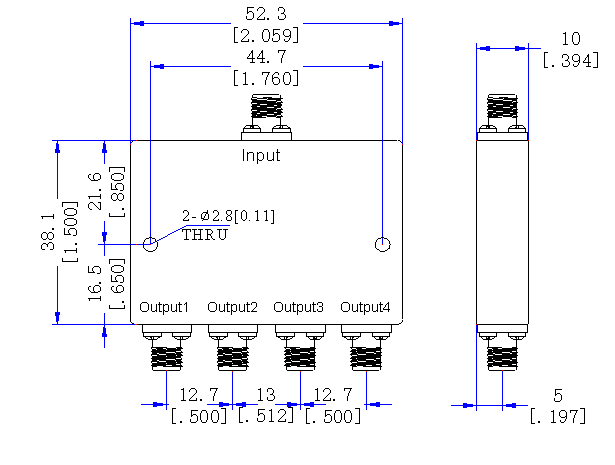

Outline Dimensions:52.3*38.1*10（mm）
Weight:70（g）
