Home > All Collections > 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector

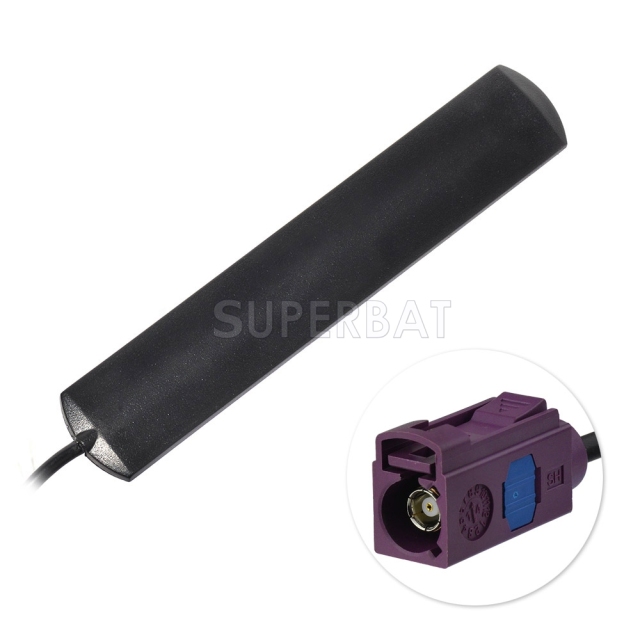

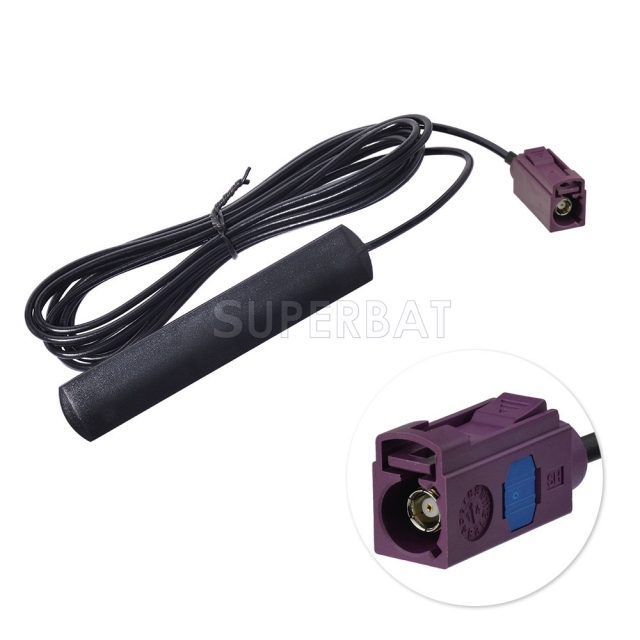

  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector

2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector

No.GM3-560-F03DSJ-020-300
Antenna Type：Glass MountNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：824-960Mhz 1710-1990MhzConnector Series：FakraConnector Polarity：StandardConnector Gender：JackGain：2dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG174Cable Length：3mWeight：45g
CONTACT US
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
  • 2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
Description

Frequency Range(MHz): 824-960Mhz 1710-1990Mhz
Bandwidth(MHz): 136/280
VSWR≤1.5
Gain: 2dbi
Max Input powe(W) 60
Input Impedance(Ω) 50
Polarization Type Vertical
Antenna Length(mm):115 x 22 x 4
Cable Length: 3M
Cable Type: RG 174

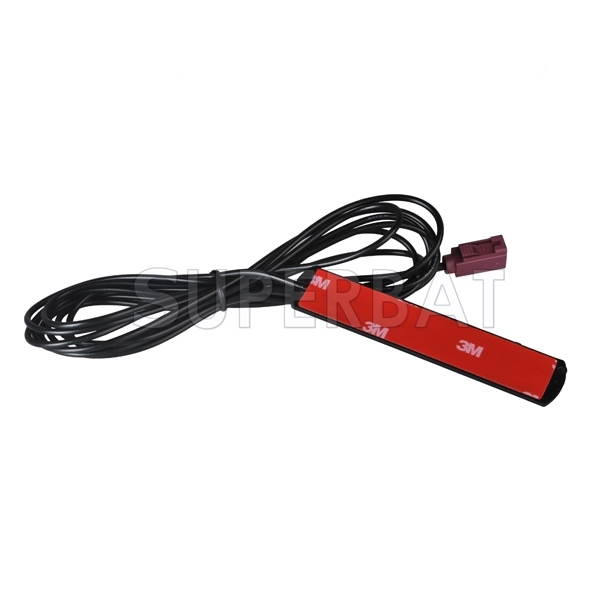

Mounting Adhesive
Cable Connector: FAKRA D female straight connector (default)
please contact us if you need other connector(SMB/SMC/BNC/FME/TNC/MCX /MMCX / Fakra )
Weight: 45g
