Specifications
Frequency Range:2000～12400 MHz
Insertion Loss ≤ 2.8dB（Excluding theoretical loss:10.8 dB）
Input Port VSWR:Typ.1.24 / Max.1.50
Output Port VSWR:Typ.1.20 / Max.1.50
Isolation:Typ.25dB / Min.18dB
Amplitude Balance:±0.5dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female （Passivated Stainless Steel）
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

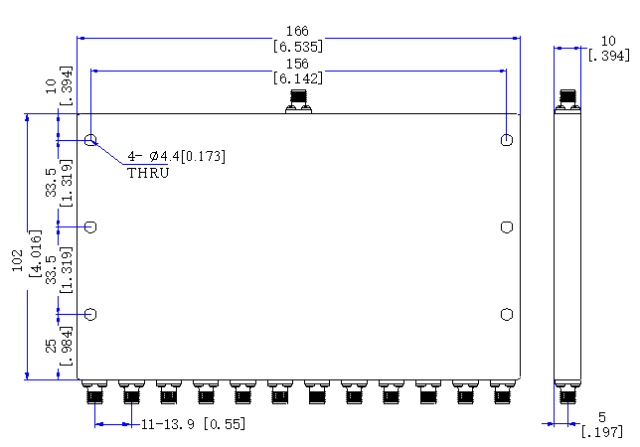

Outline Dimensions :102*166*10（mm）
