Home > All Collections > Others > Power Splitter > 2000~26500MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000~26500MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000~26500MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

2000~26500MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-2/26.5-8S

CONTACT US
  • 2000~26500MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:2000～26500 MHz

Insertion Loss ≤ 5.8dB（Excluding theoretical loss:9.0 dB）

Input Port VSWR:Typ.1.40 / Max.1.60

Output Port VSWR:Typ.1.30 / Max.1.60

Isolation ≥16dB

Amplitude Balance:±0.6dB

Phase Balance:±7°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:Splitter:20W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

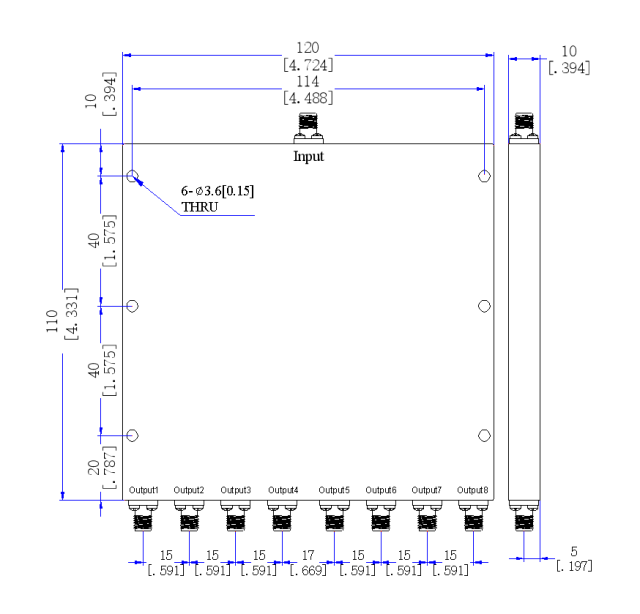

Outline Dimensions:110*120*10（mm）
