Home > All Collections > Others > Power Splitter > 2000~4000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000~4000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2000~4000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter

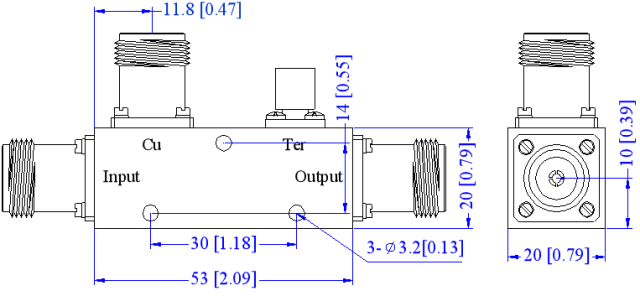

2000~4000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-2/4-30N
CONTACT US
  • 2000~4000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：2000～4000 MHz

Insertion Loss≤ 0.5 dB

VSWR Primary：Max. 1.25

VSWR Secondary ：Max. 1.25

Directivity：Min. 18dB

Nominal Coupling：30±0.8dB

Impedance：50 Ohms

Input/Output Connectors：N-Female

Power Rating：50W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing ：Sandblasting natural color conductive oxide
