Specifications
Frequency Range:2000～40000 MHz
Insertion Loss ≤ 3.0 dB（Excluding theoretical loss :6.0 dB）
Input Port VSWR:Typ.1.28 / Max.2.1
Output Port VSWR:Typ.1.26 / Max.1.6
Isolation:Typ.20dB / Min.15dB
Amplitude Balance:± 0.5dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:2.92mm-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

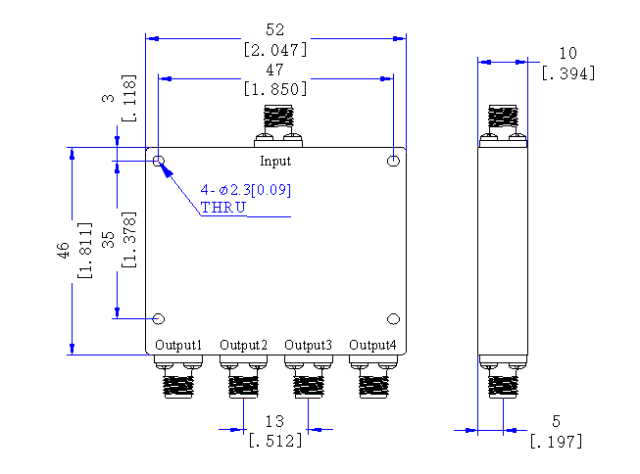

Outline Dimensions :52*46*10（mm）
Weight:120（g）
