Specifications
Frequency Range:2000～40000 MHz
Insertion Loss ≤ 4.0 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.8
Output Port VSWR:Typ.1.26 / Max.1.6
Isolation:Typ.22dB / Min.15dB
Amplitude Balance:±0.5dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:2.92mm-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

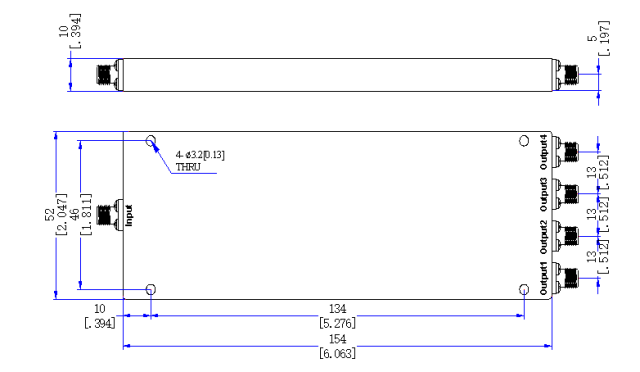

Outline Dimensions:154*52*10（mm）
