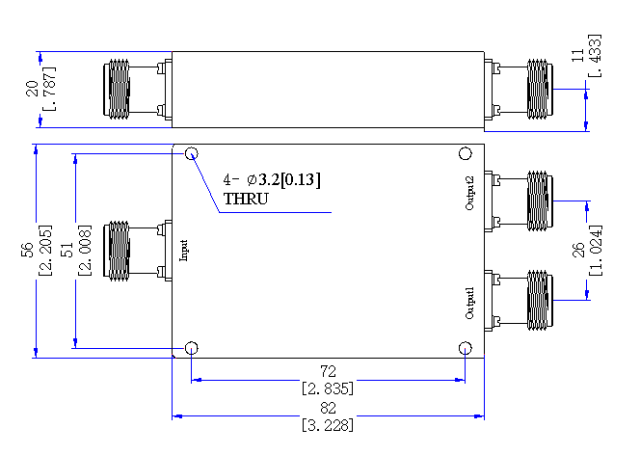

200~1000 MHz N Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.2/1-2N
CONTACT US
  • 200~1000 MHz N Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:200～1000 MHz

Insertion Loss ≤ 0.6dB（Excluding theoretical loss: 3.0 dB）

Input Port VSWR :Typ.1.16 / Max.1.25

Output Port VSWR:Typ.1.12 / Max.1.20

Isolation:Typ.28dB / Min.20dB

Amplitude Balance :±0.2dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors:N-Female

Power Rating Splitter:30W; Combiner:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide
