Specifications
Frequency Range:200～1000 MHz
Insertion Loss ≤ 1.2dB（Excluding theoretical loss:9.0dB）
Input Port VSWR :Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.12 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

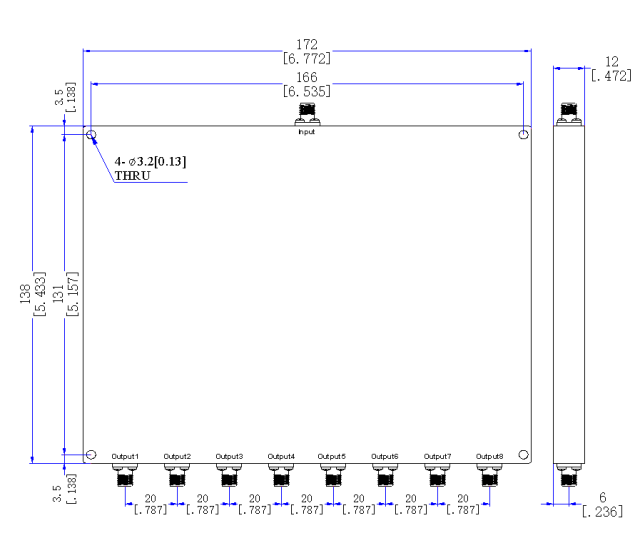

Outline Dimensions:172*138*12（mm）
Weight:600（g）
