Home > All Collections > 200~1000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 200~1000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 200~1000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

200~1000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.2/1-8S100
CONTACT US
  • 200~1000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:200～1000 MHz

Insertion Loss ≤ 1.0dB（Excluding theoretical loss:9.0dB）

Input Port VSWR :Typ.1.18 / Max.1.25

Output Port VSWR :Typ.1.12 / Max.1.20

Isolation:Typ.26dB / Min.20dB

Amplitude Balance:±0.3dB

Phase Balance:±4°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female；

Power Rating Splitter:100W; Combiner:10W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

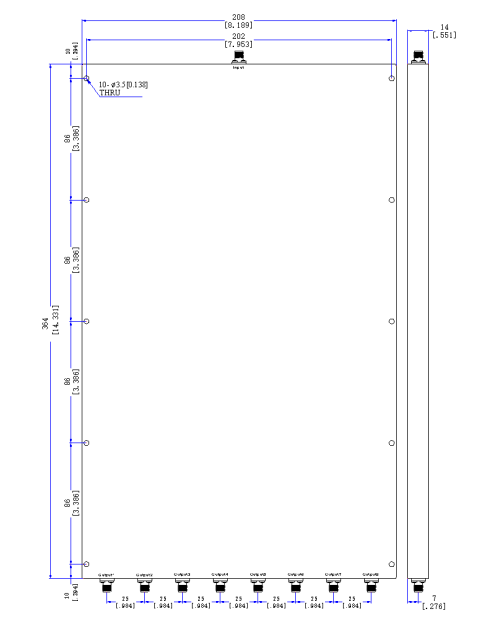

Outline Dimensions:364*208*14（mm）
