Specifications
Frequency Range:200～2700 MHz
Insertion Loss ≤ 3.0dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR :Typ.1.13 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

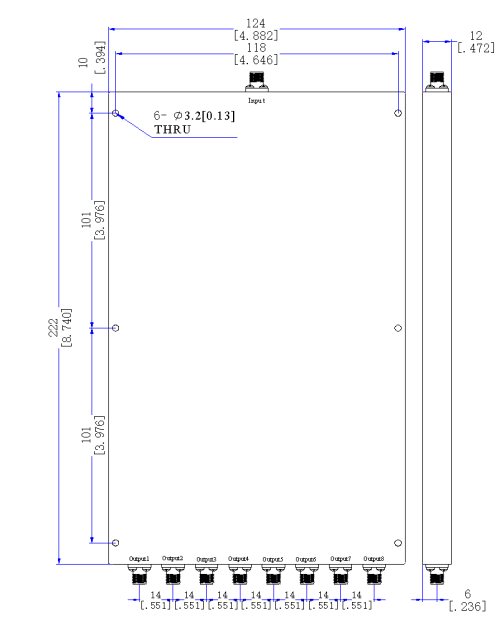

Outline Dimensions:222*124*12（mm）
