Specifications
Frequency Range:200～3000 MHz
Insertion Loss ≤ 2.0 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR :Typ.1.16 / Max.1.20
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation:Typ.28dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

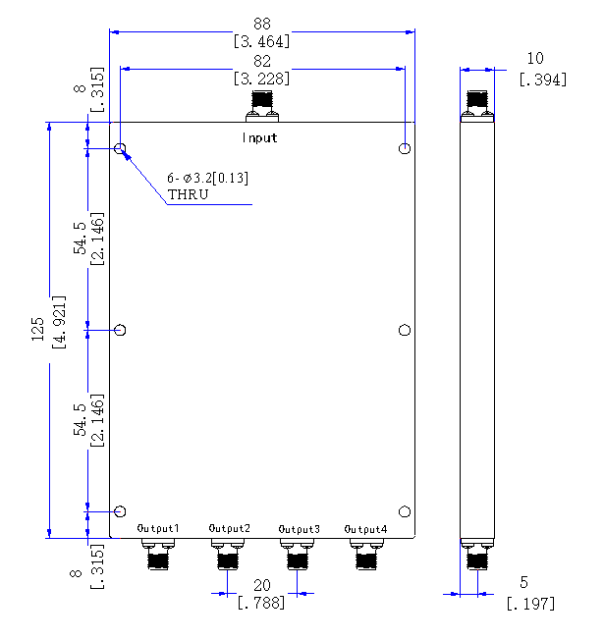

Outline Dimensions:125*88*10（mm）
Weight:240（g）
