Specifications
Frequency Range:200～4000 MHz
Insertion Loss ≤ 2.5 dB（Excluding theoretical loss: 6.0 dB）
Input Port VSWR :Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.16 / Max.1.20
Isolation:Typ.28dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

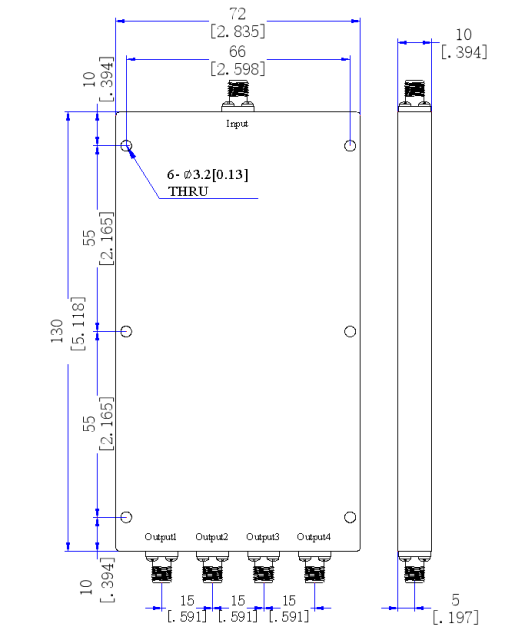

Outline Dimensions:130*72*10（mm）
Weight:210（g）
