Specifications
Frequency Range:200～500 MHz
Insertion Loss ≤ 0.5dB（Excluding theoretical loss:6.0dB）
Input Port VSWR:Typ.1.14 / Max.1.25
Output Port VSWR:Typ.1.11 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.2dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:200W; Combiner:50W
Operation Temperature：-55℃ ~ +75℃
Surface Finishing：Sandblasting natural color conductive oxide

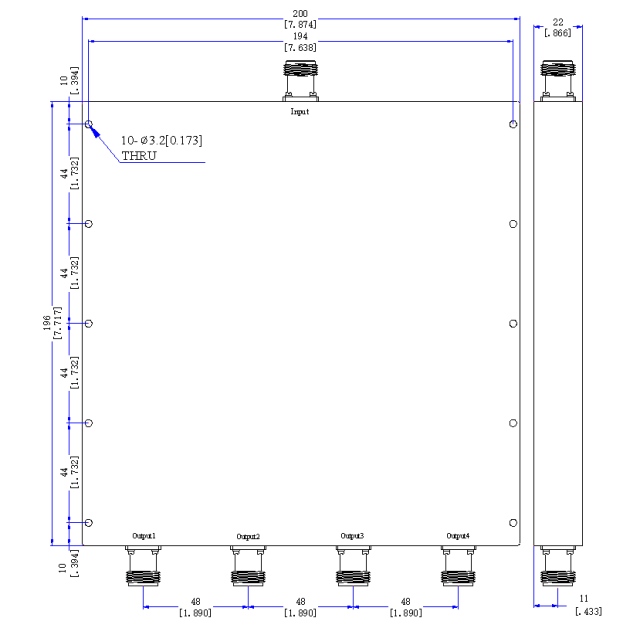

Outline Dimensions：196*200*22（mm）
