Specifications
Frequency Range:200～6000 MHz
Insertion Loss ≤ 2.5 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR :Typ.1.16 / Max.1.25
Output Port VSWR:Typ.1.13 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.2dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

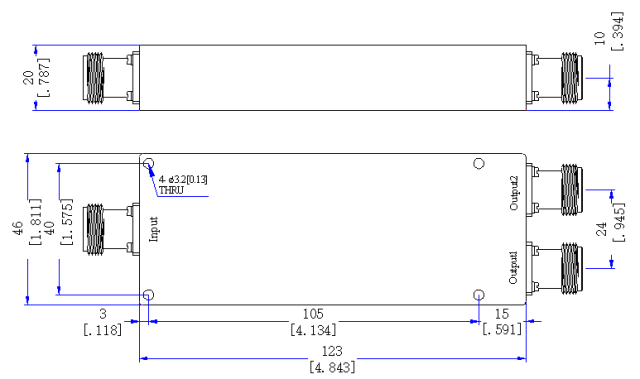

Outline Dimensions:123*46*20（mm）
Weight:290（g）
