200~6000 MHz N Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.2/6-4N
CONTACT US
  • 200~6000 MHz N Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：200～6000 MHz

Insertion Loss ≤ 4.6 dB（Excluding theoretical loss：6.0 dB）

Input Port：VSWR ≤ 1.50（200M-230M）﹠1.30（230M-6000M）

Output Port VSWR ：Typ.1.16 / Max.1.25

Isolation：Typ.28dB / Min.18dB

Amplitude Balance：±0.3dB

Phase Balance :±4°

Impedance:50 Ohms

Input/Output Connectors:N-Female

Power Rating Splitter:30W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

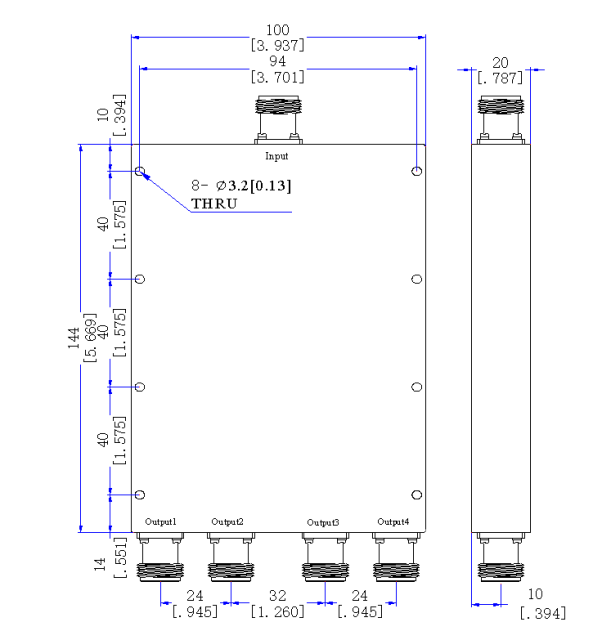

Outline Dimensions:144*98*20（mm）
