200~6000 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.2/6-2S
CONTACT US
  • 200~6000 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:200～6000 MHz

Insertion Loss ≤ 2.0 dB（ 3.0 dB）

Input Port VSWR ≤ 1.25

Output Port VSWR ≤ 1.20

Isolation:Min. 18dB

Amplitude Balance :±0.3dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating Splitter:20W; Combiner:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing：Sandblasting natural color conductive oxide

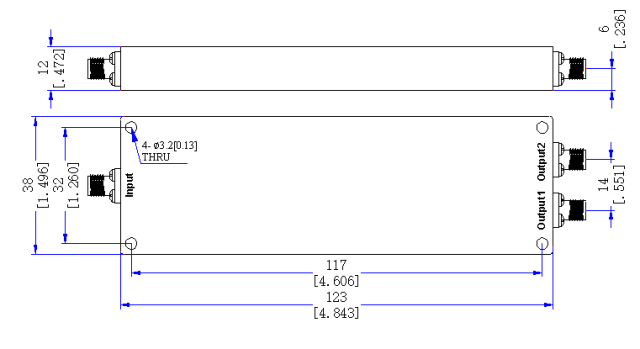

Outline Dimensions：123*38*12（mm）
